Quantum Aquatics Timing System
|
QUANTUM Aquatics is an intelligent timer with inputs/outputs interface and on-board memory buffers.
|
| QUANTUM Aquatics PRIMARY 3480.911: Quantum Aquatics Primary without internal power supply. 3480.911.IS: Quantum Aquatics Primary with internal power supply. Supplied with Swimming software and cables to connect to external battery and PC. |
 |
| QUANTUM Aquatics PRY & SDY 480.912: Quantum Aquatics Primary & Secondary. Supplied with internal data switchers, Swimming software and cables to connect to external battery and PC. |
 |
| QUANTUM Aquatics PRY & SDY POWER SUPPLY 3480.932: Power supply for Quantum Aquatics Primary & Secondary. |
 |
| Timing system: | Capacity 23:59:59.99, repetitive |
| Resolution: | 1, 1/10, 1/100th sec (sampling 1/10 000) |
| Ageing renewable: | ± 4ppm (10 years) |
| Power supply: | Stability (0-45°C): ± 0.1ppm |
| Power consumption (typical): | External battery 10-18 VDC |
| (without harness module): | 0.55 A (Primary) 1.1 A (Primary & Secondary) |
| (with 24 harness modules): | 1.00 A (Primary) 2.0 A (Primary & Secondary) |
| Working temperature: | 0°C-60°C |
| Relative humidity: | 0-94% (non-condensing) |
| Certification: |  standard specifications and  RoHS compliant |
| 3397.910 | Laptop compatible Quantum (2 per Quantum Aquatics >PRY & SDY are needed) |
| 3480.941 | Quantum Synchro-Swimming Software |
| 3480.925 | Quantum single transportation case |
| 3480.926 | Quantum double transportation case |
| 3480.920 | Quantum online printer with integrated battery (2 per Quantum Aquatics >PRY & SDY are needed) |
| 3440.708 | External BlueTooth RS422 SubD 9pMC |
| 3480.932 | Quantum Aquatics PRY & SRY Power supply |
| 3330.661 | Thermal online printer |

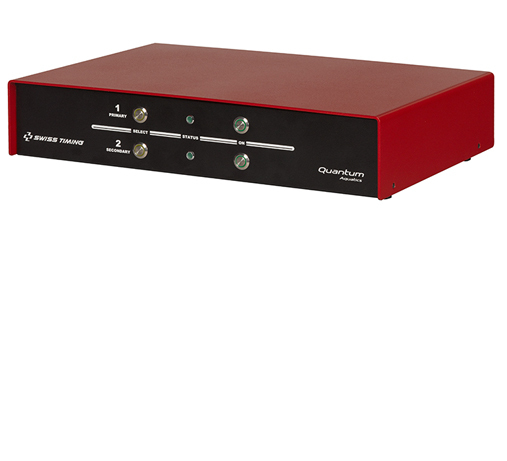

QUANTUM Aquatics PRY & SECONDARY
QUANTUM Aquatics PRIMARY
Download an information sheet.
Data from the timer interface is transmitted to the associated computers through a USB port.
All data processing then takes place in the computer.
The quantity of data stored (i.e. number of races or competitions) is only limited by the size of the hard drive, enabling results from previous races to be recalled for examination on the computer’s display, for re-transmission to the scoreboard or re-printing of the results. Printed data are available in two formats.
The timer concept shall enable start lists and event data including titles and records to be loaded into the main timer database.
This enables a full result list to be generated by the timer, including competitor names.
This data is available for transmission to the main results printer or to a numeric, alphanumerical or matrix scoreboard.
The timer interface is operated from a 12-volts, DC power pack.
The addition of battery powered computers and A4 printers allows the competition to continue even in the event of a total mains power failure (not recommended).
This feature also allows the timing system to be operated safely from the swimming pool side.
The timer in its Primary & Secondary version includes two complete timing systems and one data switcher to select information from first or second systems.
Thanks to its intuitive and interactive graphical representation of the key functions, the timer is very easy to use and is suitable for use at all levels of competition, from school events right up to the World Championships and Olympic Games, where the power and versatility of the system has already been proven.
In addition, full FINA* compliance is guaranteed.
