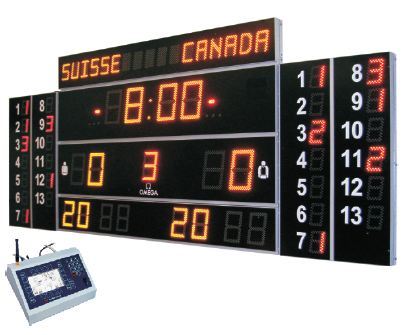

CALYPSO Waterpolo Scoreboards
|
|
- Optimized contrast & brightness
- Display intensity adjusts to ambient light conditions
- Integrated horn (110 dB @ 1 m)
- Indoor & outdoor use
- Aluminium construction
- Viewing distance up to 150 m
- Easy maintenance from front
- Wireless Bluetooth link (option)
- Compatible with MONTREAL Shot clocks with game clock, article number 3435.904
| Optional team names module | ||||||
| Article number: | 3403.952 | 3403.958 | 3403.959 | 3403.968 | 3403.969 | 3403.970 |
| Width: | 2400mm | 2400mm | 4040mm | 2400mm | 4040mm | 2400mm |
| Height: | 1020mm | 1360mm | 1360mm | 1700mm | 1700mm | 340mm |
| Thickness: | 94mm | 94mm | 94mm | 94mm | 94mm | 94mm |
| Weight: | 43kg | 59kg | 135kg | 73kg | 149kg | 16kg |
| Power consumption: | 150VA | 250VA | 400VA | 350VA | 500VA | 150VA |
| Optional mounting kit: | 3403.903 | 3403.904 | 3403.908 | 3403.905 | 9403.909 | |
| Optional mounting kit: (with optional team names module) | 3403.904 | 3403.905 | 3403.909 | 3403.906 | 3403.904 + 3403.906 |
Common specifications:
| Power supply : | 115/230 VAC |
| Data connection : | RS422 (9600 bauds, 8 data bit) |
| Viewing distance : | up to 150 m |
| Display type : | amber and red LED segment arrays |
| Operating temperature : | 0 to +50°C |
| Storage temperature : | -30 to +85°C |
| Protection : | IP54 (indoor and outdoor use, rain and sun proof) |
| Certifications : |  and  RoHS compliant |
| 3403.952 : CALYPSO Waterpolo type 952 Main scoreboard; displays essential information, including : Game time, Scores (0 to 99), Period, 3 timeout indicators per team, Time stopped indication |
 |
| 3403.958 : CALYPSO Waterpolo type 958 Same functions as type 952, plus : - Penalties module, showing up to 2 penalties per team in seconds |
 |
| 3403.959 : CALYPSO Waterpolo type 959 Same functions as type 952, plus : - Penalties module, for up to 2 penalties/team in seconds - 2 modules showing the number of penalties per player (1 to 13) |
 |

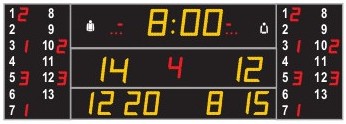

| 3403.968 : CALYPSO Waterpolo type 968 Same functions as type 952, plus : - Penalties module showing up to 2 penalties per team in seconds (amber) with the player number information (red) |
 |

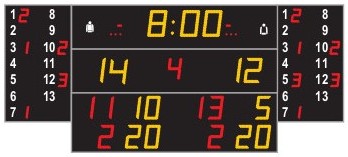

| 3403.969 : CALYPSO Waterpolo type 969 Same functions as type 952, plus : - Penalties module showing up to 2 penalties per team in seconds (amber) with the player number information (red) - Two modules showing the number of penalties/player (1 to 13) |
 |
| 3403.970 : CALYPSO Alphanumerical 17 chars line Teams names module featuring one text line display and using matrix LED amber digits (15 cm). |
 |
| 3403.759 : CALYPSO Wireless BlueTooth (internal mounted) Bluetooth receiver module for CALYPSO scoreboard, in order to reduce cable clutter (the controller must then be replaced by a Bluetooth-compatible version, see last page). |
|
| 3403.903 to 909 : Mounting kits : please check the table in "CALYPSO specifications" |  |
CALYPSO overview
The CALYPSO range of products proposes modular, mixed numeric/alphanumeric scoreboards with advanced LED technology, suitable for both indoor and outdoor. CALYPSO scoreboards feature large digits and a light sensor to adapt the brightness to the ambient light conditions. This allows for an optimum readability, providing crystal clear viewing distances of up to 150 m. The compact grey aluminium housing has an acrylic finish to guarantee the best protection against atmospheric conditions, and integrates a horn. The scoreboard is designed to be installed on a wall with all inter-module wiring hidden from view. Cleaning and maintenance are made easy with access from the front of the scoreboard. CALYPSO scoreboards are made with the highest quality materials, and all components are thoroughly tested before assembly.
