452 MB 7120-2

452 MB 7120-2

Multisport - Pro

Enquire

Model

452MB7120-2 With Programmable Names

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

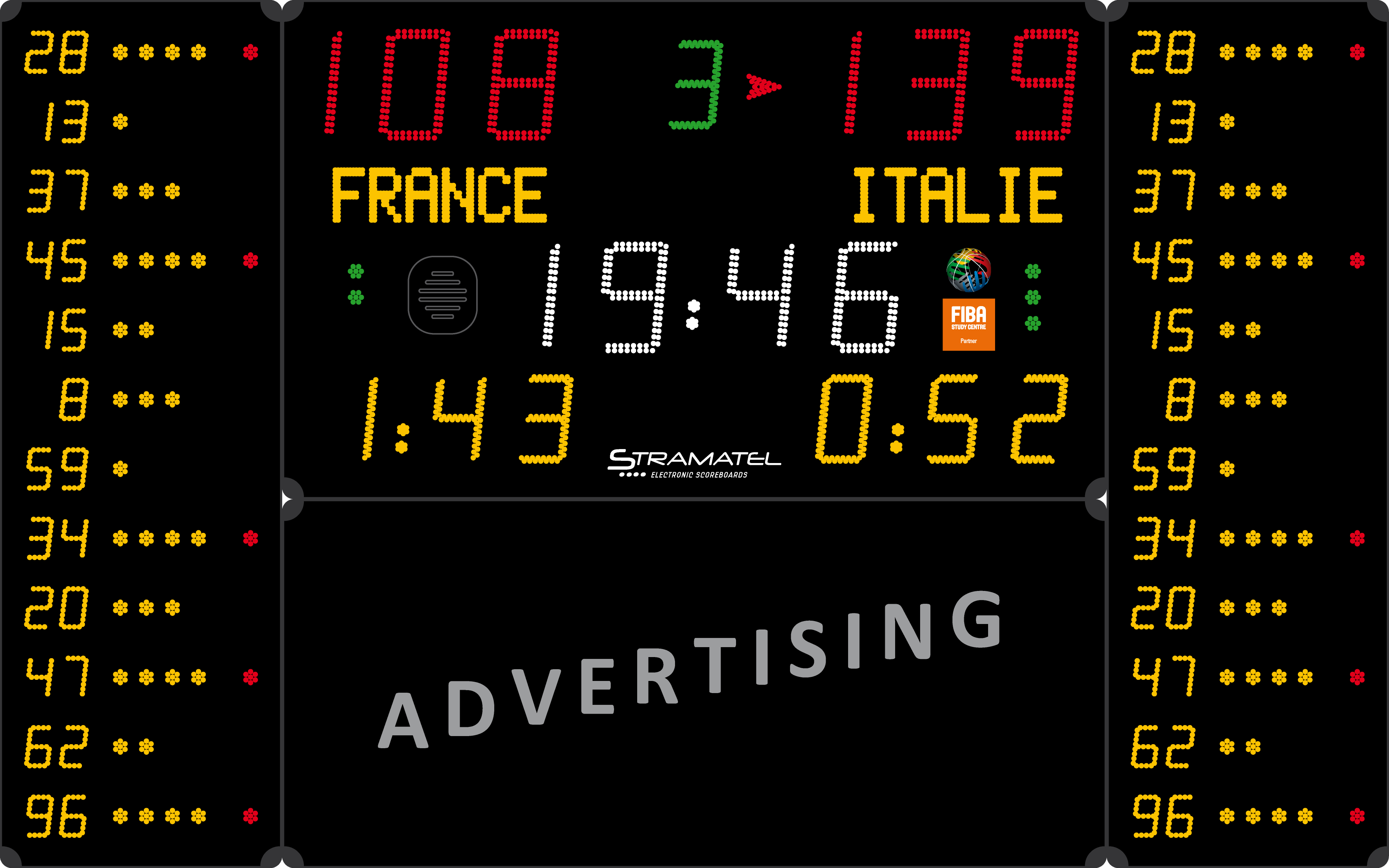

1 scoreboard made of 3 modules + 1 panel
2 control console, 1 start/stop timer console
2 carrying cases for control consoles
1 mains cable
Junction box and transmission cables (for cable controlled version)
Operating and installation instructions

Description

Use:	Indoor
Transmission:	Radio (868 MHz) or cable
Readability:	110m, angle >160°
Dimensions:	3200 x 2000 x 90mm
Weight:	105 kg
Power supply:	230V / 50-60Hz Power consumed: 270 VA
Protection:	Unbreakable mat polycarbonate front face (DIN 18032-3)
Integrated Horn	116dB at 1m
Mains cable (supplied)	3 x 20m – Type: 230V, 3G, 0.75 mm
Cable controlled:	For cable controlled models or radio controlled models with cable set: Junction Box + 50 m transmission cable (scoreboard/junction box) – Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)

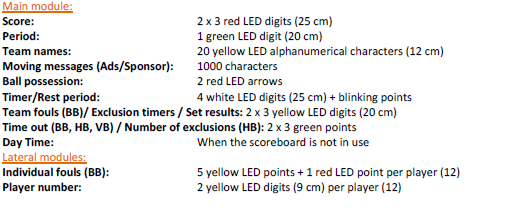

Display Functions

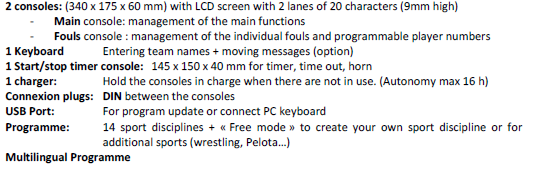

Control Console

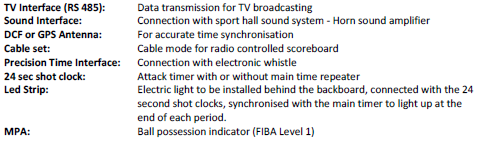

Options
Brochure

452MB7120-2 - 2 - Displ

452MB7120-2 - 3 - Control

452MB7120-2 - 4 - Options

Download the 452 MB 7120-2 Brochure
