Model

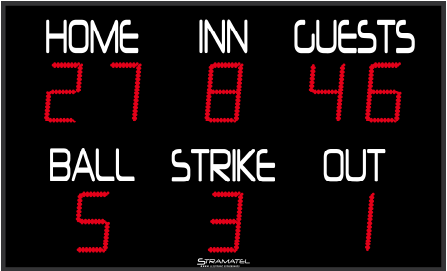

FBB                      With Home/Guests Stickers

Baseball

Composition

  • 1 scoreboard (made of 1 module)
  • 1 control console
  • 1 carrying case for control console
  • 1 mains cable
  • Operating and installation instructions

Description

Use: Outdoor
Transmission: Radio (868 MHz) or cable
Readability: 120m, angle >160°
Dimensions: 1900 x 1150 x 90mm
Weight: 40 kg
Power supply: 230V / 50-60Hz
Power consumed: 63 VA
Protection: unbreakable mat polycarbonate front face (DIN 18032-3)
Mains cable (supplied): 5m (socket not supplied - Type: 230V, 3G, 0.75 mm
Cable controlled: for cable controlled models or radio controlled models with cable set
Junction box + 50m transmission cable (scoreboard / junction box) -
Type: phone cable 2 pairs 6/10th + 10m transmission cable DIN/DIN (junction box / console)
Installation: on I-Beams(Adjustable fixing) or wall-mounted (with clamps supplied)
Brightness: adjustable from the control console


  • Display Functions
  • Control Consoles
  • Options
  • Brochure
FBB - 2 - Displ
FBB - 3 - Control
FBB - 4 - Options
Download the FBB Brochure pdfdownload-628
