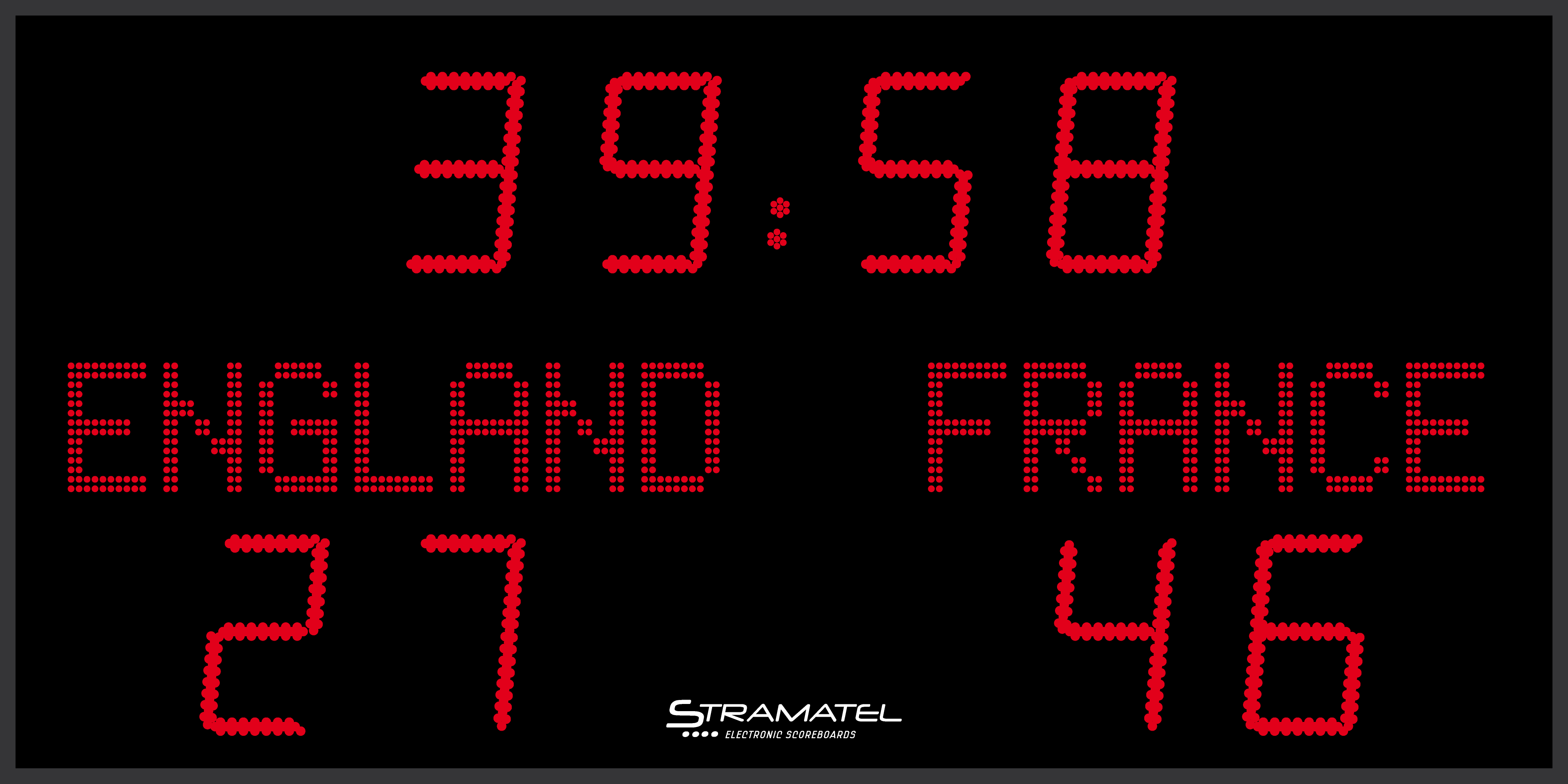

FRB AD - Soccer, Rugby or Field Hockey Scoreboard
Enquire

Model

FRB AD                     With programmable team names

Soccer, Rugby or Field Hockey

Composition

  • 1 scoreboard made of 1 modules
  • 1 control consoles,
  • 1 Keyboard
  • 1 carrying case for control consoles
  • 1 mains cables
  • Operating and installation instructions

Description

Use: Outdoor
Transmission: Radio (868 MHz) or cable
Readability: 120m, angle >160°
Dimensions: 2000 x 1000 x 90mm
Weight: 738 kg
Power supply: 230V / 50-60Hz Power consumed: 192VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3
Mains cable (supplied) 1x5 m – Type: 230V, 3G, 0.75 mm
Cable controlled: For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)
  • Display Functions
  • Control Console
  • Options
  • Brochure
452FRBAD - 2 - Displ
452FRBAD - 3 - Control
452FRBAD - 4 - Options
Download the FRB AD Brochure pdfdownload-628
