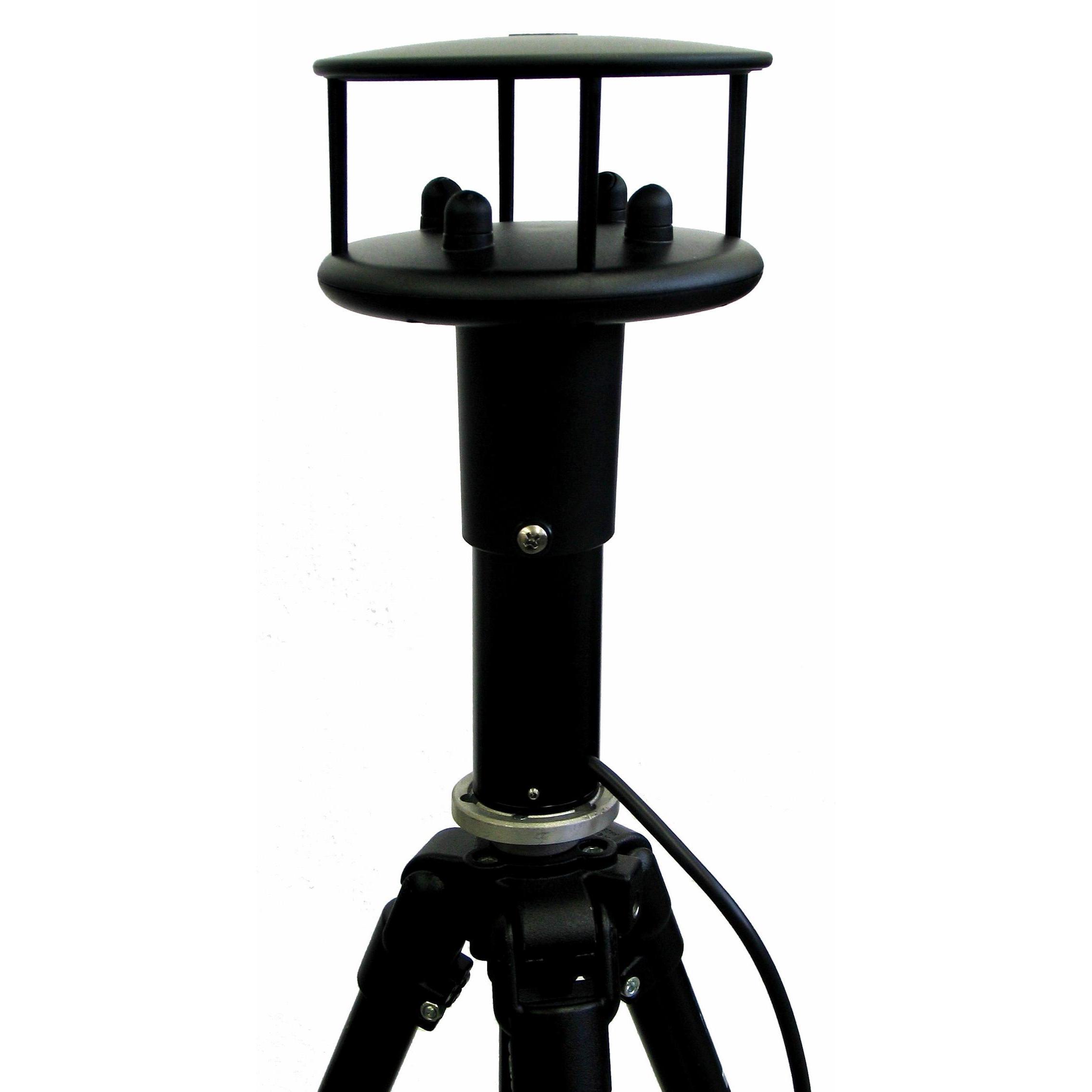

Sirocco Wind Gauge
|
|
- Self-contained
- no loss of accuracy
- no moving parts
- 360° adjustable
- adaptable height with tripod
- maintenance free operation
- reliable ultrasonic technology
- easy OSV Bridge connection
| Article number | 3436.910 |
| Measurement duration | Any, selectable in the PC interface |
| Display | PC Scan’O’Vision |
| Range | -9.9 m/s to +9.9 m/s |
| Accuracy | +/- 0.1 m/s |
| Power | Scan’O’Vision Bridge serial multiplex |
| Operating temperature | -35°C to +70°C |
| Storage temperature | -40°C to +90°C |
| Protection | IP65 |
| Dimensions (without tripod) | Ø 142 mm x 255 mm |
| Weight (without tripod, with cable) | 1.3 kg |
| Inputs/outputs | Tuchel 7pF RS422 |
| Cable length | 5 m |
| 9051.6300 | Multipurpose tripod |
| 1900.010 | Cable OSV Bridge Multiplex 10m, RS 422 bidirectional tuchel 7pMC, Sub-D 9pMC |
| 1900.050 | Cable OSV Bridge Multiplex 50m, RS 422 bidirectional tuchel 7pMC, Sub-D 9pMC * |
| 1900.100 | Cable OSV Bridge Multiplex 100m, RS 422 bidirectional tuchel 7pMC, Sub-D 9pMC * |
The device is an ultra-sonic sensor, which sends information directly to the multiplex board, from which it also takes its power. The wind speed acquisition is performed automatically for each race, in accordance with settings in the photo-finish software. Different settings for each relevant race (100m, 200m and sprint hurdles) are set in advance to determine the length of the wind measurement, and the point in the race at which measurement begins.
The Sirocco offers consistent performance with no loss of accuracy due to an absence of any moving parts. The device is fully maintenance free, being robustly constructed of highest quality materials and components.
Thanks to its advanced features the Sirocco offers accurate results in all weather conditions, making it the perfect solution at the best price.
